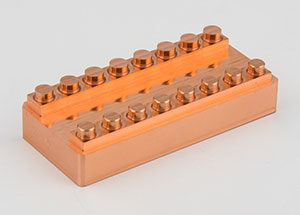

| Name | Lens cone electrode testing piece |
| Material | Copper |
| Machine | JDHGT400_A8 |
| Size | 82×37×12mm |
| Advantages | 1、Precision of the center distance is ±0.002mm; 2、Dimensional accuracy is ±0.005mm; 3、There is no wire drawing on the conical surface under 40 times magnifier. |

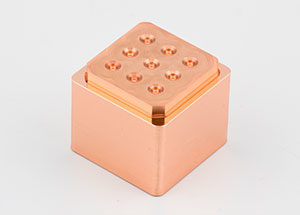

| Name | Lens cone electrode testing piece |
| Material | Copper |
| Machine | JDHGT400_A8 |
| Size | 26×26×20mm |
| Advantages | 1、The center distance deviation of adjacent two holes ≤±0.002mm; 2、The consistency deviation of the largest circle diameter on 29° flat conical surface ≤±0.005mm; 3、There is no obvious cutter mark on the surface under 40 times magnifier; 4、No burr on the surface. |

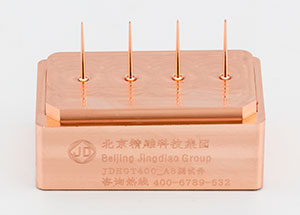

| Name | Electrode testing piece |
| Material | Copper |
| Machine | JDHGT400_A8 |
| Size | 28×48×30mm |
| Advantages | 1、With the ratio of length to diameter 20:1, top diameter deviation of the gate ≤0.010mm, and circular degree deviation of the gate ≤0.005mm; 2、Relative position precision ≤±0.005mm; 3、The surface effect from top to bottom Ra≤0.100μm; 4、No burr on the surface. |

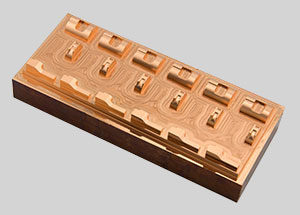

| Name | Automobile mountings plug-in electrode testing piece |
| Material | Copper |
| Machine | JDHGT400_A8 |
| Size | 156×60×20mm |
| Advantages | 1、Dimensional accuracy is ±0.005mm; 2、There is no obvious trace between the R angle and the plane; 3、With no wire drawing, the surface roughness Ra≤0.100μm ; 4、The smallest R angle to clear root ≤0.3mm. |

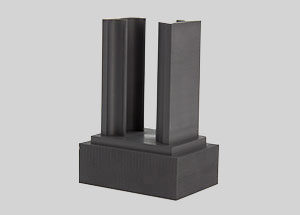

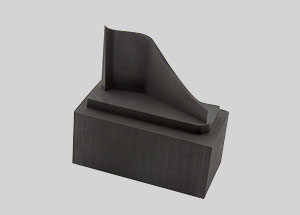

| Name | Graphite electrode testing piece |
| Material | Graphite（Sigri 8650） |
| Machine | JDHGT600_A10SH_SMD |
| Size | 58×43×75mm |
| Advantages | 1、Clear edges and no edge breakage in machining brittle material-graphite; 2、The structure is thin-wall and the ratio of cutting tools’ length to diameter is 9:1; 3、With great surface consistency, dimensional accuracy is ±0.010mm; 4、On-machine measurement and intelligent modification technology is applied to control the machining allowance. |
| Name | Graphite electrode testing piece |
| Material | Graphite（Sigri 8650） |
| Machine | JDPGT600_A10SH_SMD |
| Size | 70×25×50mm |
| Advantages | 1、Clear edges and no edge breakage in machining brittle material-graphite; 2、The structure is thin-wall and the ratio of cutting tools’ length to diameter is 10:1; 3、With great surface consistency, shape precision is ±0.010mm; 4、On-machine measurement and intelligent modification technology is applied to control the machining allowance. |

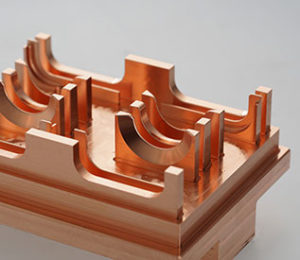

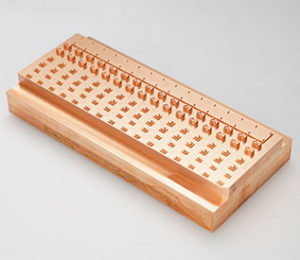

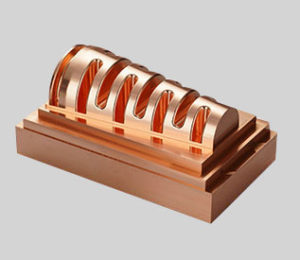

Electronic connectors electrode
Electronic connectors electrode
Electronic connectors electrode

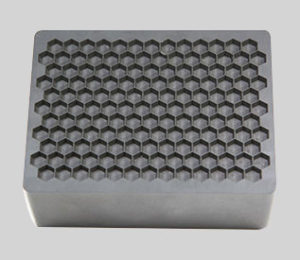

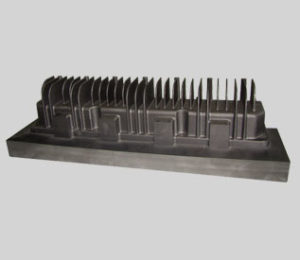

Graphite electrode
Electronic connectors electrode
Graphite electrode
